Product Details

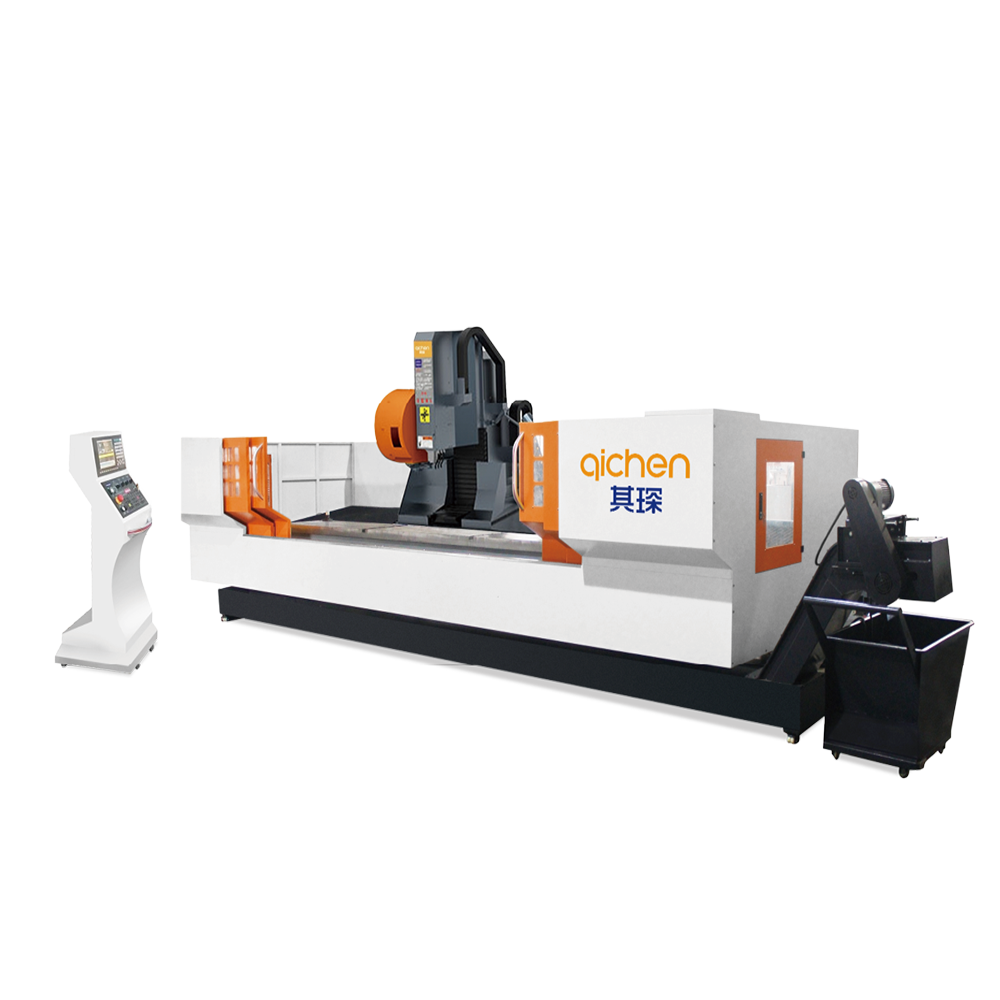

The BT40 Series CNC Profile Machining Center is a high-rigidity CNC profile processing equipment. Adopting BT40 spindle taper, it can complete multi-process precision machining such as drilling, milling and tapping for various metals including steel, aluminum, copper and non-metallic profiles.

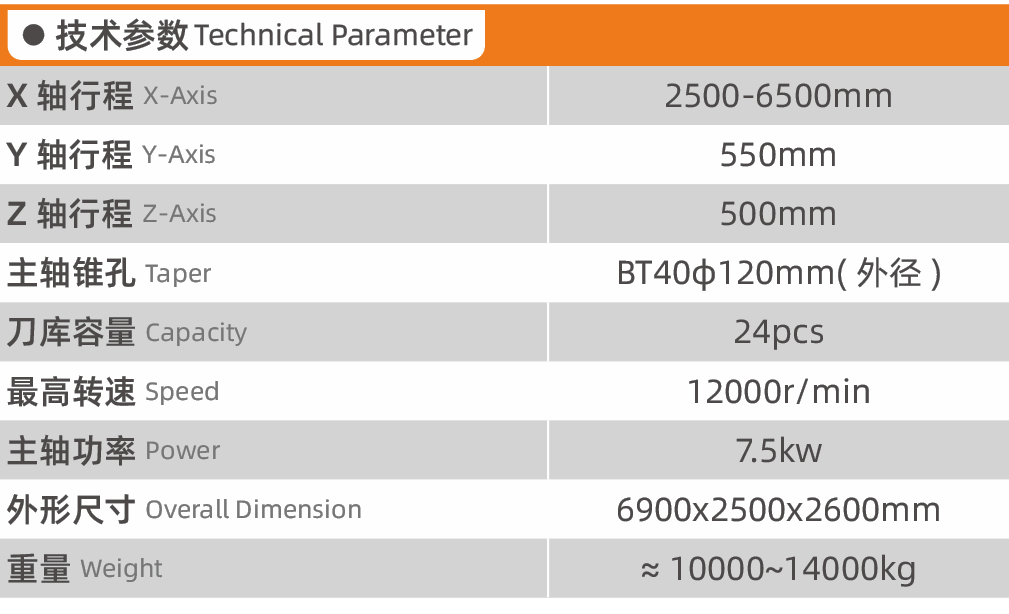

The machine is widely applied in rail transit, aerospace, military machinery, linear guide modules, communication and other industries. Its X-axis travel ranges from 2500 mm to 6500 mm, while Y-axis and Z-axis travels are 550 mm and 500 mm respectively. Equipped with a 24-tool magazine, the spindle reaches a maximum speed of 12000 rpm with 7.5 kW power. Featuring enhanced overall rigidity and load capacity, it supports mass high-precision machining of long-size and heavy-weight profiles, meeting the demands for efficient processing of complex profiles across industrial sectors.
